Product Description

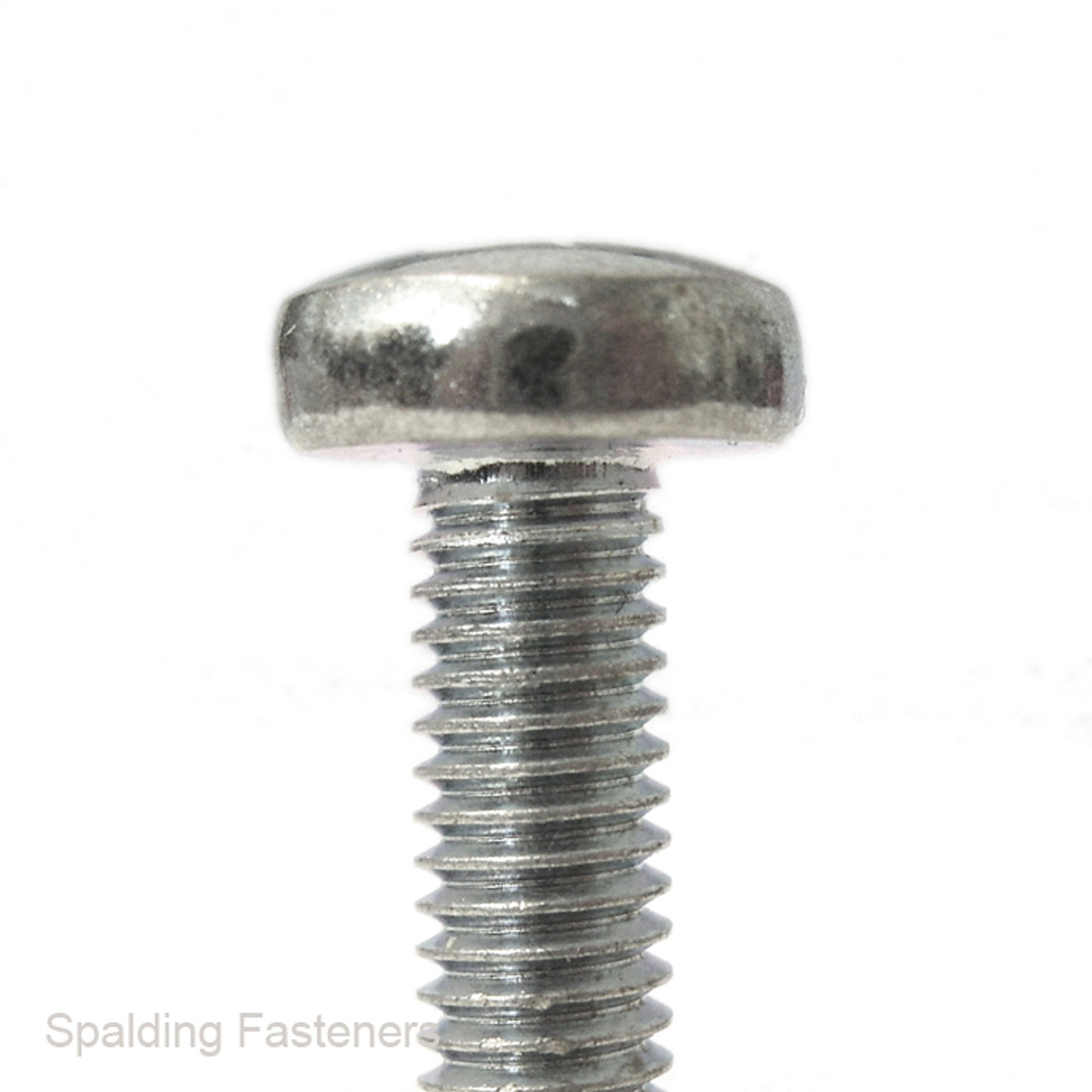

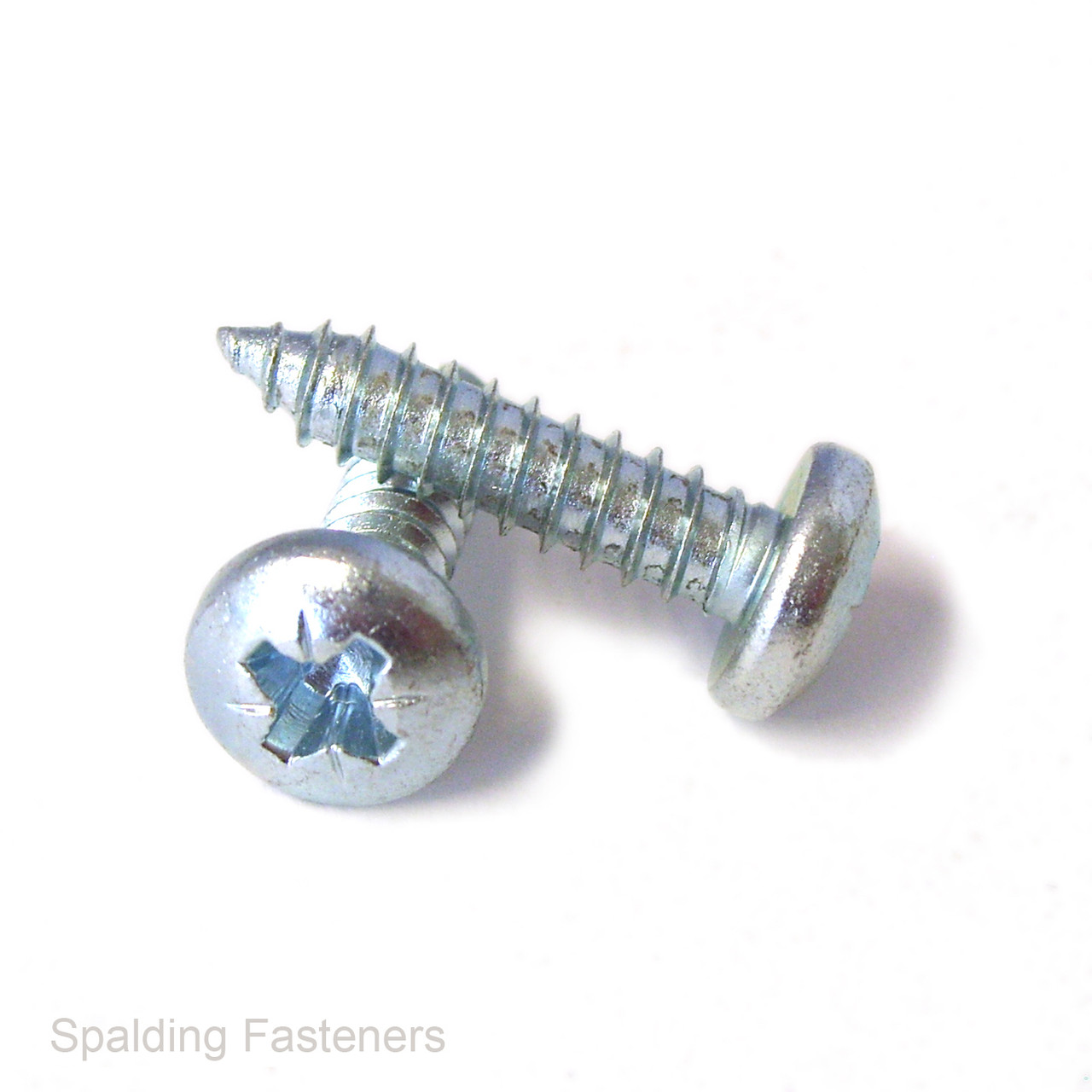

Pan Pozi Self Tappers (AB)Material - Zinc Plated Steel
DIN7981
| A | B | C | D | E | F | G | H |
| No.14 | 6.3mm | 1 1/2" | 38mm | 1/2" | 12.5mm | 3/16" | 4.55mm |
| No.14 | 6.3mm | 1 1/4" | 32mm | 1/2" | 12.5mm | 3/16" | 4.55mm |
| No.14 | 6.3mm | 1 3/4" | 42mm | 1/2" | 12.5mm | 3/16" | 4.55mm |
| No.14 | 6.3mm | 1" | 25mm | 1/2" | 12.5mm | 3/16" | 4.55mm |
| No.14 | 6.3mm | 1/2" | 13mm | 1/2" | 12.5mm | 3/16" | 4.55mm |
| No.14 | 6.3mm | 2" | 50mm | 1/2" | 12.5mm | 3/16" | 4.55mm |
| No.14 | 6.3mm | 3/4" | 19mm | 1/2" | 12.5mm | 3/16" | 4.55mm |
| No.14 | 6.3mm | 5/8" | 16mm | 1/2" | 12.5mm | 3/16" | 4.55mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
