Product Description

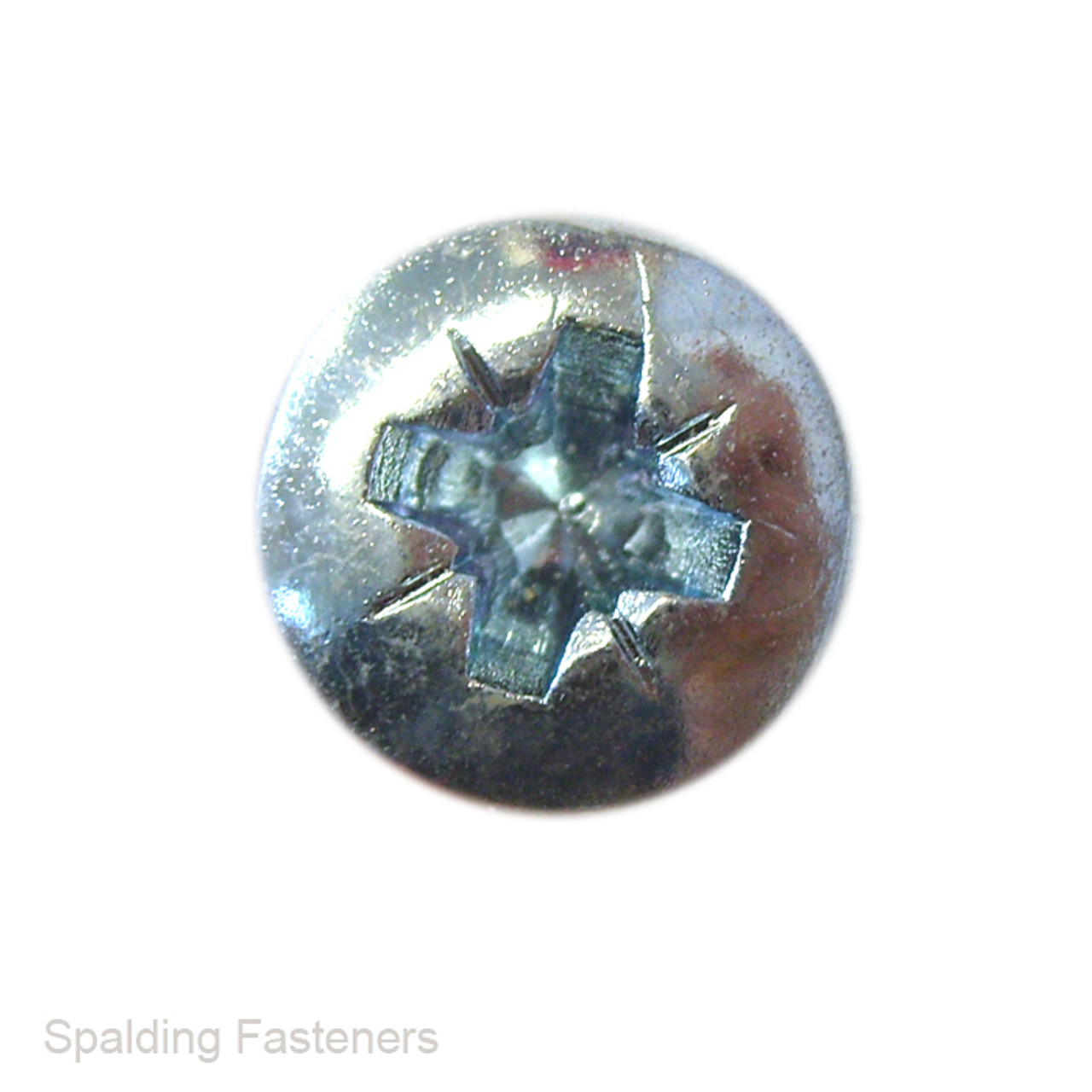

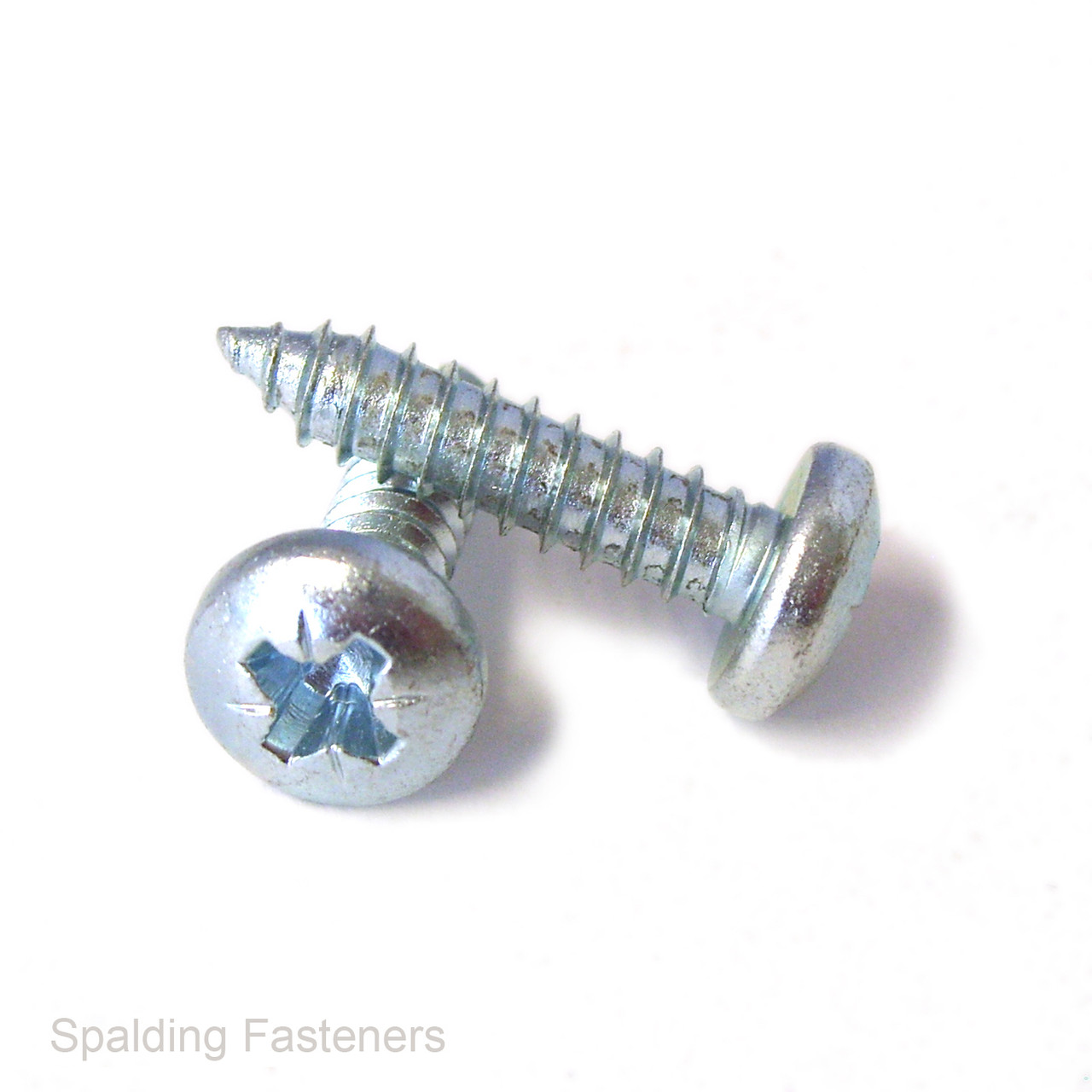

Pan Pozi Self Tappers (AB)Material - Zinc Plated Steel
DIN7981
| A | B | C | D | E | F | G | H |
| No.4 | 2.9mm | 1 1/2" | 38mm | 7/32" | 5.6mm | 3/32" | 2.2mm |
| No.4 | 2.9mm | 1" | 25mm | 7/32" | 5.6mm | 3/32" | 2.2mm |
| No.4 | 2.9mm | 1/2" | 13mm | 7/32" | 5.6mm | 3/32" | 2.2mm |
| No.4 | 2.9mm | 1/4" | 6mm | 7/32" | 5.6mm | 3/32" | 2.2mm |
| No.4 | 2.9mm | 3/16" | 4.5mm | 7/32" | 5.6mm | 3/32" | 2.2mm |
| No.4 | 2.9mm | 3/4" | 19mm | 7/32" | 5.6mm | 3/32" | 2.2mm |
| No.4 | 2.9mm | 3/8" | 9.5mm | 7/32" | 5.6mm | 3/32" | 2.2mm |
| No.4 | 2.9mm | 5/8" | 16mm | 7/32" | 5.6mm | 3/32" | 2.2mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
