Product Description

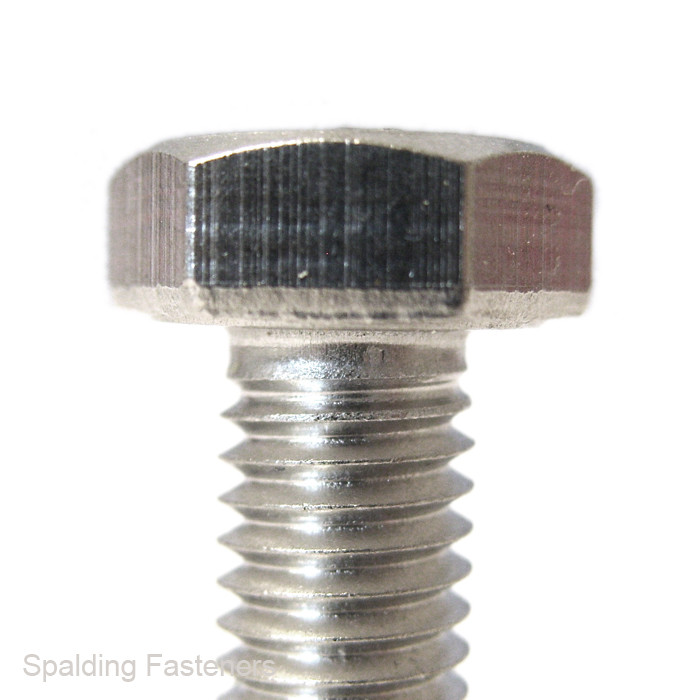

Material: A2 Stainless SteelType - DIN931 Hex Head Part Threaded Bolts
Standard Metric Coarse Thread
| A | B | C | D | E | F | G |
| 12mm | 100mm | 30mm | 19mm | 7.5mm | 1.75 | 70mm |
| 12mm | 50mm | 30mm | 19mm | 7.5mm | 1.75 | 20mm |
| 12mm | 60mm | 30mm | 19mm | 7.5mm | 1.75 | 30mm |
| 12mm | 70mm | 30mm | 19mm | 7.5mm | 1.75 | 40mm |
| 12mm | 80mm | 30mm | 19mm | 7.5mm | 1.75 | 50mm |
| 12mm | 90mm | 30mm | 19mm | 7.5mm | 1.75 | 60mm |
| 12mm | 45mm | 30mm | 19mm | 7.5mm | 1.75 | 15mm |
| 12mm | 110mm | 30mm | 19mm | 7.5mm | 1.75 | 75mm |
| 12mm | 120mm | 30mm | 19mm | 7.5mm | 1.75 | 90mm |
| 12mm | 130mm | 36mm | 19mm | 7.5mm | 1.75 | 94mm |
| 12mm | 140mm | 36mm | 19mm | 7.5mm | 1.75 | 104mm |
| 12mm | 150mm | 36mm | 19mm | 7.5mm | 1.75 | 114mm |
| 12mm | 160mm | 36mm | 19mm | 7.5mm | 1.75 | 124mm |
| 12mm | 170mm | 36mm | 19mm | 7.5mm | 1.75 | 134mm |
| 12mm | 180mm | 36mm | 19mm | 7.5mm | 1.75 | 144mm |
| 12mm | 190mm | 36mm | 19mm | 7.5mm | 1.75 | 154mm |
| 12mm | 200mm | 36mm | 19mm | 7.5mm | 1.75 | 164mm |
| 12mm | 210mm | 49mm | 19mm | 7.5mm | 1.75 | 161mm |
| 12mm | 220mm | 49mm | 19mm | 7.5mm | 1.75 | 171mm |
| 12mm | 230mm | 49mm | 19mm | 7.5mm | 1.75 | 191mm |
| 12mm | 240mm | 49mm | 19mm | 7.5mm | 1.75 | 191mm |
| 12mm | 250mm | 49mm | 19mm | 7.5mm | 1.75 | 201mm |
| 12mm | 40mm | 49mm | 19mm | 7.5mm | 1.75 | 21mm |
| 12mm | 55mm | 30mm | 19mm | 7.5mm | 1.75 | 25mm |
| 12mm | 65mm | 30mm | 19mm | 7.5mm | 1.75 | 35mm |
| 12mm | 75mm | 30mm | 19mm | 7.5mm | 1.75 | 45mm |
| 12mm | 85mm | 30mm | 19mm | 7.5mm | 1.75 | 55mm |
| 12mm | 95mm | 30mm | 19mm | 7.5mm | 1.75 | 65mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
