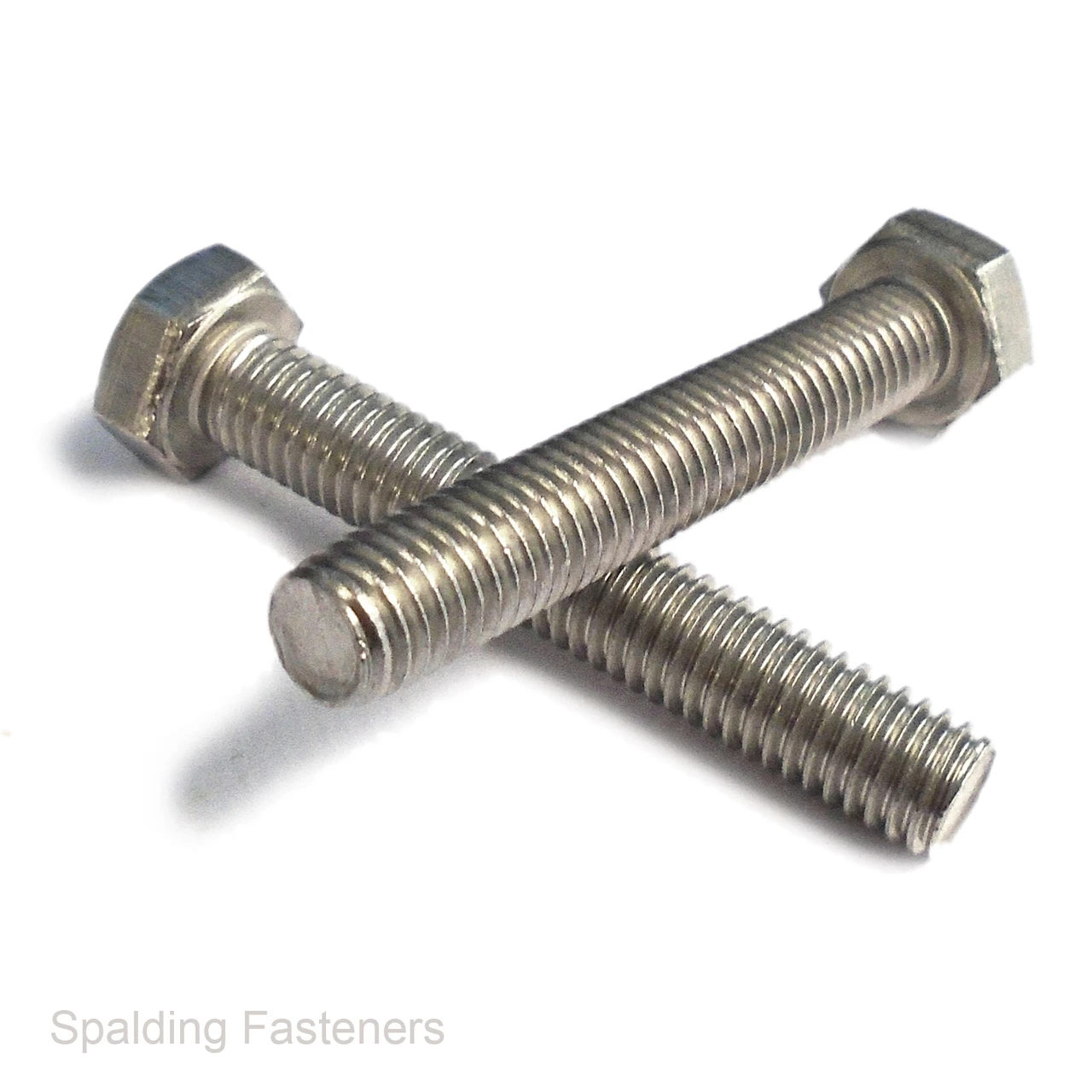

Product Description
Material: A4-80 Marine Grade Stainless SteelType: Fully Threaded Set Screws
Head: Hex
Tensile Strength - 800 N/mm squared
Thread: Metric Coarse
DIN: 933
| A | B | C | D | E |
| 8mm | 100mm | 13mm | 5.3mm | 1.25 |
| 8mm | 10mm | 13mm | 5.3mm | 1.25 |
| 8mm | 12mm | 13mm | 5.3mm | 1.25 |
| 8mm | 14mm | 13mm | 5.3mm | 1.25 |
| 8mm | 16mm | 13mm | 5.3mm | 1.25 |
| 8mm | 18mm | 13mm | 5.3mm | 1.25 |
| 8mm | 20mm | 13mm | 5.3mm | 1.25 |
| 8mm | 22mm | 13mm | 5.3mm | 1.25 |
| 8mm | 25mm | 13mm | 5.3mm | 1.25 |
| 8mm | 28mm | 13mm | 5.3mm | 1.25 |
| 8mm | 30mm | 13mm | 5.3mm | 1.25 |
| 8mm | 35mm | 13mm | 5.3mm | 1.25 |
| 8mm | 40mm | 13mm | 5.3mm | 1.25 |
| 8mm | 45mm | 13mm | 5.3mm | 1.25 |
| 8mm | 50mm | 13mm | 5.3mm | 1.25 |
| 8mm | 55mm | 13mm | 5.3mm | 1.25 |
| 8mm | 60mm | 13mm | 5.3mm | 1.25 |
| 8mm | 65mm | 13mm | 5.3mm | 1.25 |
| 8mm | 70mm | 13mm | 5.3mm | 1.25 |
| 8mm | 75mm | 13mm | 5.3mm | 1.25 |
| 8mm | 80mm | 13mm | 5.3mm | 1.25 |
| 8mm | 90mm | 13mm | 5.3mm | 1.25 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
