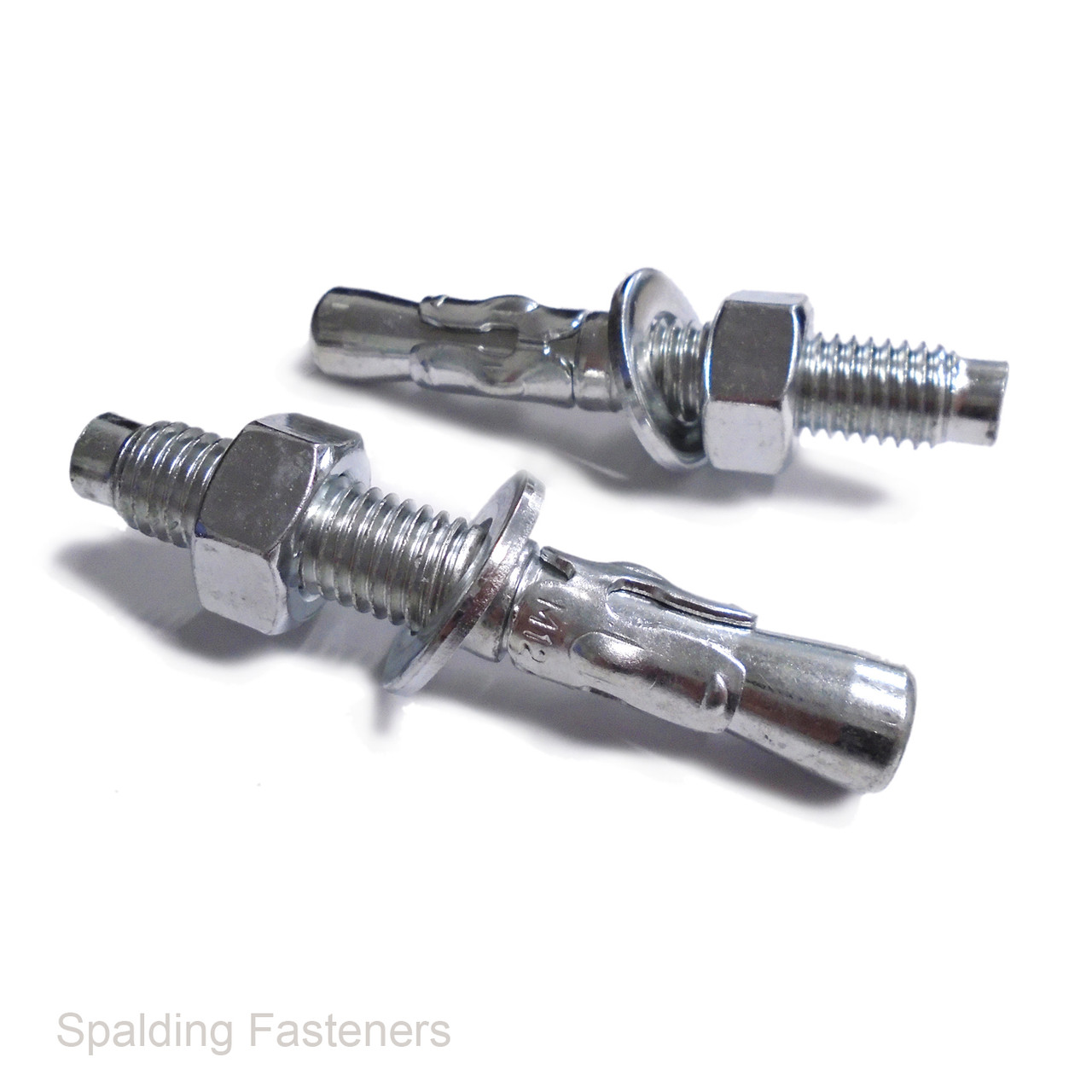

M12 Metric Zinc Plated Through Bolts

Product Description

Thread size - M12

Bright zinc plated steel

CE Approved eta-19/0786

Assembled through fixing with nut and washer

M12 X 80mm Long
Min.StructureThickness - 130mm
Drill hole 12mm,
Min hole depth - -
Fixture Clearance Hole --14mm
Effective Embedmen tDepth --
Max Fixture Thickness - -
Thread length - 32mm
Tightening Torque - 55nm


M12 X 100mm Long
Min.StructureThickness - 130mm
Drill hole 12mm,
Min hole depth - -85mm
Fixture Clearance Hole --14mm
Effective Embedmen tDepth -65mm-
Max Fixture Thickness - 5mm-
Thread length - 44mm
Tightening Torque - 55nm


M12 X 110mm Long
Min.StructureThickness - 130mm
Drill hole 12mm,
Min hole depth - 85mm-
Fixture Clearance Hole --14mm
Effective Embedmen tDepth --65mm
Max Fixture Thickness - -15mm
Thread length - 53mm
Tightening Torque - 55nm


M12 X 120mm Long
Min.StructureThickness - 130mm
Drill hole 12mm,
Min hole depth - 85mm-
Fixture Clearance Hole --14mm
Effective Embedmen tDepth --65mm
Max Fixture Thickness - -25mm
Thread length - 63mm
Tightening Torque - 55nm


M12 X 140mm Long
Min.StructureThickness - 130mm
Drill hole 12mm,
Min hole depth - 85mm-
Fixture Clearance Hole --14mm
Effective Embedmen tDepth --65mm
Max Fixture Thickness - -45mm
Thread length - 83mm
Tightening Torque - 55nm


M12 X 150mm Long
Min.StructureThickness - 130mm
Drill hole 12mm,
Min hole depth - 85mm-
Fixture Clearance Hole --14mm
Effective Embedmen tDepth --65mm
Max Fixture Thickness - -15mm
Thread length - mm
Tightening Torque - 55nm


M12 X 180mm Long
Min.StructureThickness - 130mm
Drill hole 12mm,
Min hole depth - 85mm-
Fixture Clearance Hole --14mm
Effective Embedmen tDepth --65mm
Max Fixture Thickness - -85mm
Thread length - 95mm
Tightening Torque - 55nm


M12 X 200mm Long
Min.StructureThickness - 130mm
Drill hole 12mm,
Min hole depth - 85mm-
Fixture Clearance Hole --14mm
Effective Embedmen tDepth --65mm
Max Fixture Thickness - -105mm
Thread length - 95mm
Tightening Torque - 55nm


1. Position item being fixed and drill correct diameter hole to the minimum
recommended depth through the fixture into the substrate.
2. Clean hole by brushing and blowing to remove excess debris and dust.
3. Insert Through Bolt through the fixture and into the hole.
4. Tap into position.
5. Tighten to recommended tightening torque.

Ideal for use on:

Brackets for pipework
Industrial boilers
Roof beams to concrete frames
High rise racking
Racking protection barriers
Guide rails
Water tanks
Shutter footplates
Supports
Escape ladders
Steel erection beams
Fire escapes
