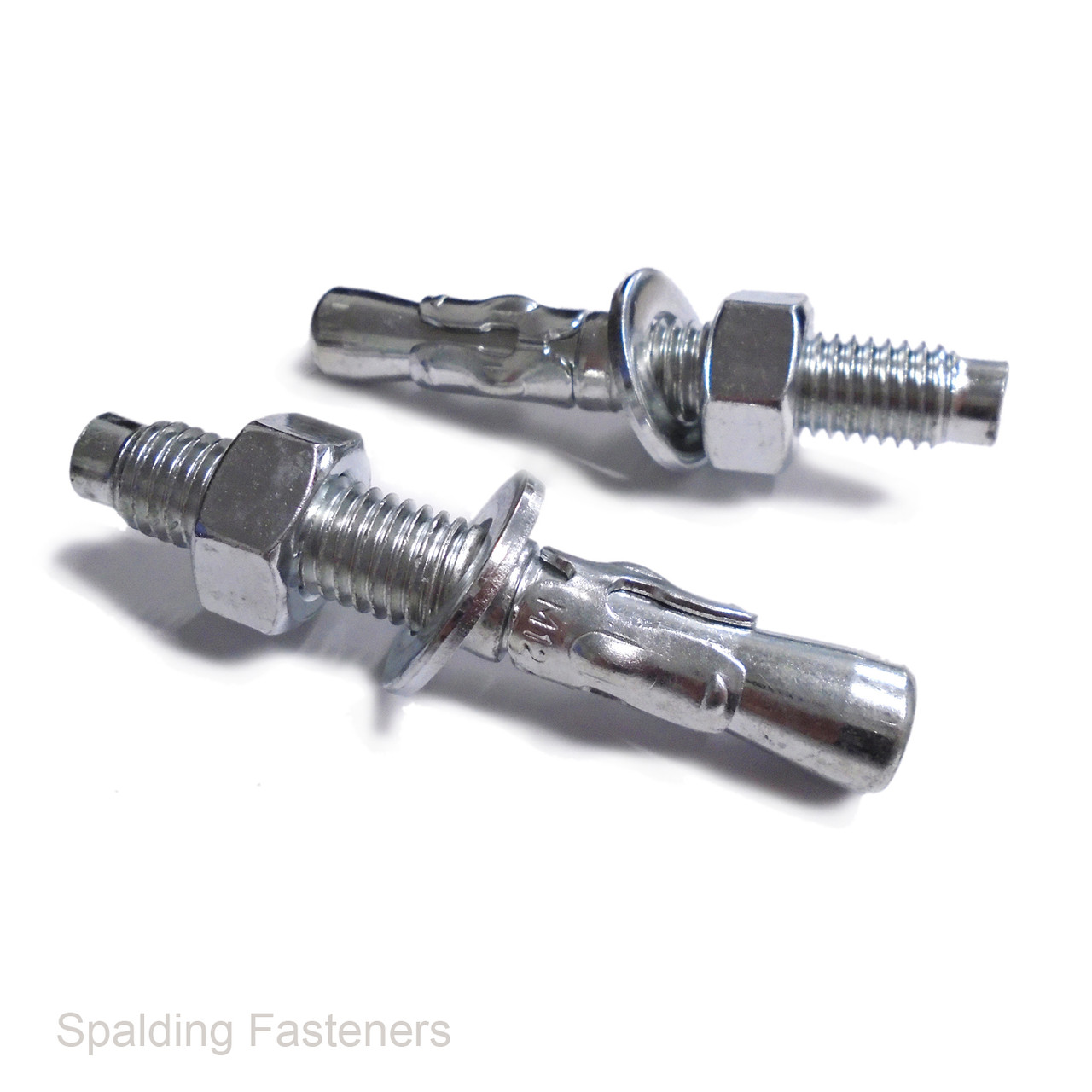

M8 Metric Zinc Plated Through Bolts

Product Description

Thread size - M8

Bright zinc plated steel

CE Approved eta-19/0786

Assembled through fixing with nut and washer

M8 X 50mm Long
Min.StructureThickness - 110mm
Drill hole 8mm,
Min hole depth - 65mm
Fixture Clearance Hole -9mm
Effective Embedmen tDepth - 50mm
Max Fixture Thickness - -
Thread length - 17mm
Tightening Torque - 20nm


M8 X 65mm Long
Min.StructureThickness - 110mm
Drill hole 8mm,
Min hole depth - 65mm
Fixture Clearance Hole -9mm
Effective Embedmen tDepth - 50mm
Max Fixture Thickness - -
Thread length - 22mm
Tightening Torque - 20nm


M8 X 75mm Long
Min.StructureThickness - 110mm
Drill hole 8mm,
Min hole depth - 65mm
Fixture Clearance Hole -9mm
Effective Embedmen tDepth - 50mm
Max Fixture Thickness - 3mm
Thread length - 32mm
Tightening Torque - 20nm


M8 X 90mm Long
Min.StructureThickness - 110mm
Drill hole 8mm,
Min hole depth - 65mm
Fixture Clearance Hole -9mm
Effective Embedmen tDepth - 50mm
Max Fixture Thickness - -18mm
Thread length - 46mm
Tightening Torque - 20nm


M8 X 100mm Long
Min.StructureThickness - 110mm
Drill hole 8mm,
Min hole depth - 65mm
Fixture Clearance Hole -9mm
Effective Embedmen tDepth - 50mm
Max Fixture Thickness - -28mm
Thread length - 50mm
Tightening Torque - 20nm


M8 X 115mm Long
Min.StructureThickness - 110mm
Drill hole 8mm,
Min hole depth - 65mm
Fixture Clearance Hole -9mm
Effective Embedmen tDepth - 50mm
Max Fixture Thickness - -43mm
Thread length - 65mm
Tightening Torque - 20nm


M8 X 130mm Long
Min.StructureThickness - 110mm
Drill hole 8mm,
Min hole depth - 65mm
Fixture Clearance Hole -9mm
Effective Embedmen tDepth - 50mm
Max Fixture Thickness - -58mm
Thread length - 80mm
Tightening Torque - 20nm




1. Position item being fixed and drill correct diameter hole to the minimum
recommended depth through the fixture into the substrate.
2. Clean hole by brushing and blowing to remove excess debris and dust.
3. Insert Through Bolt through the fixture and into the hole.
4. Tap into position.
5. Tighten to recommended tightening torque.

Ideal for use on:

Brackets for pipework
Industrial boilers
Roof beams to concrete frames
High rise racking
Racking protection barriers
Guide rails
Water tanks
Shutter footplates
Supports
Escape ladders
Steel erection beams
Fire escapes
