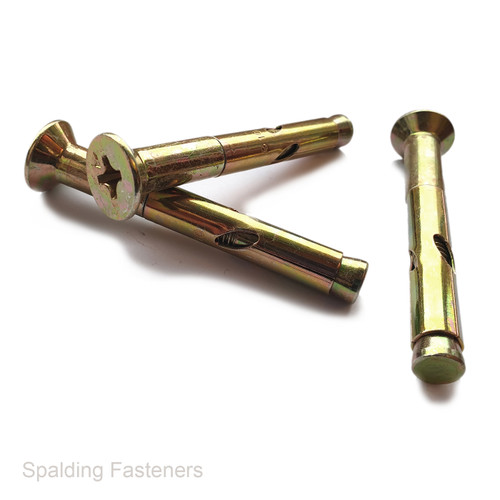

COUNTERSUNK HEAD SLEEVE ANCHORS

Product Description

Light to medium duty loads

The countersunk sleeve anchor is a thin-walled sleeve anchor suitable for use in concrete, stone, brickwork, perforated bricks and dense concrete blocks.

The oval hole enables the small gaps to be pulled down and a positive clamping force to be exerted through the fixture

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel

1.Through Fixing
2.Torque Controlled Expansion
3.Supplied Pre-Assembled For Rapid Installation
4.Countersunk Head Gives a Flush Fixture

Directions - Concrete, Stone, Brickwork, Dense Concrete Blocks,

Applications-
Plates
Hand Rails
Racking
Stadium Seating
Signs

M6 X 60 -
Drill diamter - 8mm
Overall Anchor Length - 65mm
Head diameter - 14mm
Maximum Fixture Thickness - 30mm
Fixture Clearance Hole 10mm
Embedment Depth - 35mm
Minimum Hole Depth - 40mm
Head drive - Phillips drive no3
Minimum Structure Thickness 100mm
Torque setting - 10nm


M6 X 85 -
Drill diamter - 8mm
Overall Anchor Length - 88mm
Head diameter - 14mm
Maximum Fixture Thickness - 53mm
Fixture Clearance Hole 10mm
Embedment Depth - 35mm
Minimum Hole Depth - 40mm
Head drive - Phillips drive no3
Minimum Structure Thickness 100mm
Torque setting - 10nm


M8 x 75 -
Drill diamter - 10mm
Overall Anchor Length - 78mm
Head diameter - 16mm
Maximum Fixture Thickness - 38mm
Fixture Clearance Hole 12mm
Embedment Depth - 40mm
Minimum Hole Depth - 45mm
Head drive - Phillips drive no3
Minimum Structure Thickness 100mm
Torque setting - 20nm


M8 x 100 -
Drill diamter - 10mm
Overall Anchor Length - 100mm
Head diameter - 16mm
Maximum Fixture Thickness - 60mm
Fixture Clearance Hole 12mm
Embedment Depth - 40mm
Minimum Hole Depth - 45mm
Head drive - Phillips drive no3
Minimum Structure Thickness 100mm
Torque setting - 20nm
