Product Description

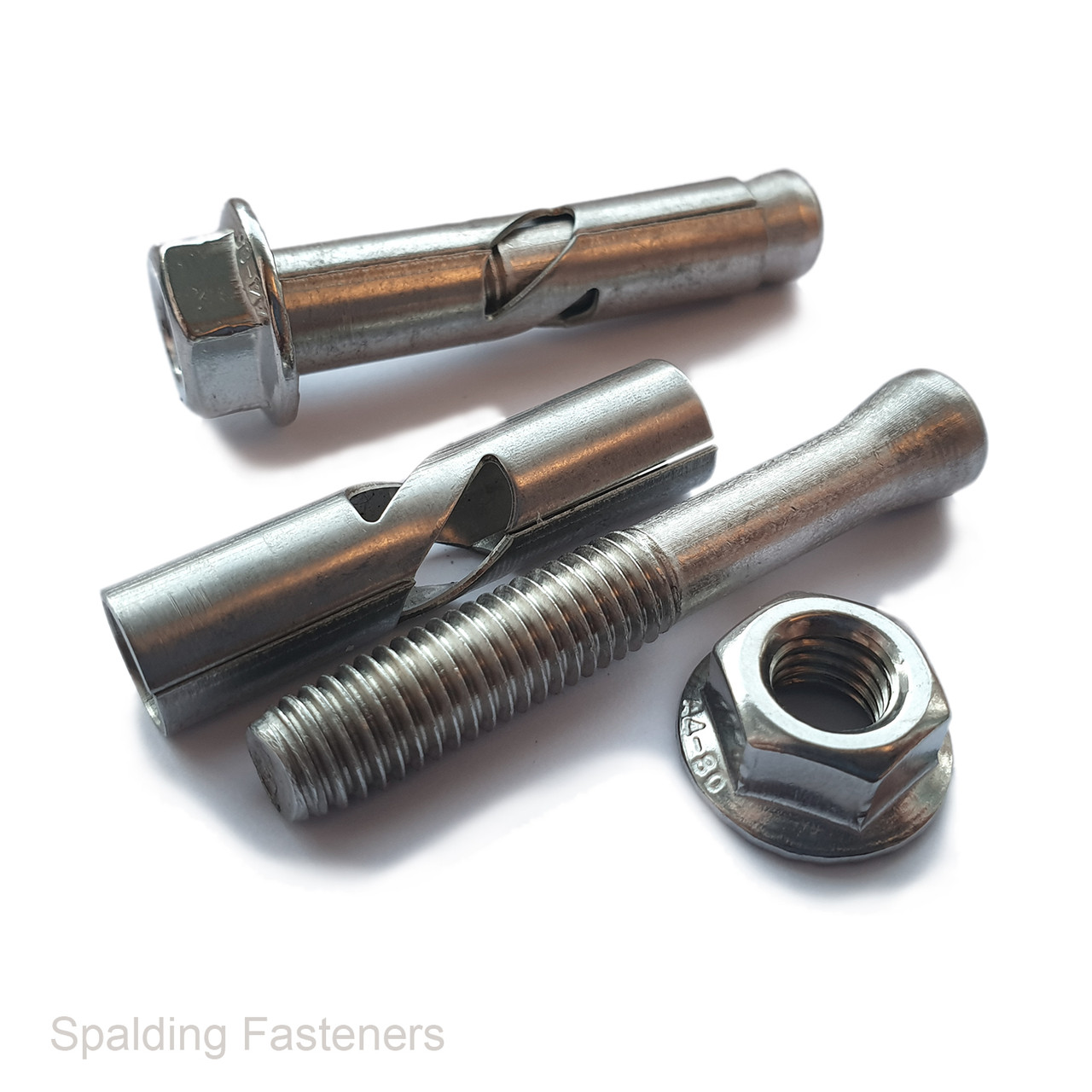

The stainless steel A4-316 sleeve anchor is a thin-walled sleeve anchor suitable for use in concrete, stone, brickwork, perforated bricks and dense concrete blocks.The diagonal slot enables the small gaps to be pulled down and a positive clamping force to be exerted through the fixture.
Material: A4-316 Stainless Steel
1.Through Fixing
2. Torque Controlled Expansion
3. Suitable for External Use and Marine Environments
4.Supplied Pre-Assembled For Rapid Installation
Product Information-
Base Materials- Non-Cracked Concrete, Stone, Brickwork,Dense Concrete Blocks,Stone,Perforated Bricks.
Applications - Plates,Hand Rails,Racking,Stadium Seating,Signs ect..
Size - M4.5 X 60
Drill size - 6mm
Anchor length - 55mm
Thread Diameter - M4.5
Max fixture thickness - 25mm
Fixture clearance hole - 7mm
Embedment depth - 30mm
Minimum hole depth - 35mm
Stucture thickness - 100mm
Installation torque - 7nm
Size - M6 X 40
Drill size - 8mm
Anchor length - 40mm
Thread Diameter - M6
Max fixture thickness - 5mm
Fixture clearance hole - 10mm
Embedment depth - 35mm
Minimum hole depth - 40mm
Stucture thickness - 100mm
Installation torque - 10nm
Size - M6 X 65
Drill size - 8mm
Anchor length - 65mm
Thread Diameter - M6
Max fixture thickness - 30mm
Fixture clearance hole - 10mm
Embedment depth - 35mm
Minimum hole depth - 40mm
Stucture thickness - 100mm
Installation torque - 10nm
Size - M6 X 65
Drill size - 8mm
Anchor length - 65mm
Thread Diameter - M6
Max fixture thickness - 30mm
Fixture clearance hole - 10mm
Embedment depth - 35mm
Minimum hole depth - 40mm
Stucture thickness - 100mm
Installation torque - 10nm
Size - M8 X 50
Drill size - 10mm
Anchor length - 50mm
Thread Diameter - M8
Max fixture thickness - 10mm
Fixture clearance hole - 12mm
Embedment depth - 40mm
Minimum hole depth - 45mm
Stucture thickness - 100mm
Installation torque - 20nm
Size - M8 X 75
Drill size - 10mm
Anchor length - 75mm
Thread Diameter - M8
Max fixture thickness - 35mm
Fixture clearance hole - 12mm
Embedment depth - 40mm
Minimum hole depth - 45mm
Stucture thickness - 100mm
Installation torque - 20nm
Size - M8 X 95
Drill size - 10mm
Anchor length - 95mm
Thread Diameter - M8
Max fixture thickness - 55mm
Fixture clearance hole - 12mm
Embedment depth - 40mm
Minimum hole depth - 45mm
Stucture thickness - 100mm
Installation torque - 20nm
Size - M10 X 55
Drill size - 12mm
Anchor length - 55mm
Thread Diameter - M10
Max fixture thickness - 10mm
Fixture clearance hole - 14mm
Embedment depth - 45mm
Minimum hole depth - 60mm
Stucture thickness - 100mm
Installation torque - 35nm
Size - M10 X 65
Drill size - 12mm
Anchor length - 65mm
Thread Diameter - M10
Max fixture thickness - 20mm
Fixture clearance hole - 14mm
Embedment depth - 45mm
Minimum hole depth - 60mm
Stucture thickness - 100mm
Installation torque - 35nm
Size - M10 X 65
Drill size - 12mm
Anchor length - 65mm
Thread Diameter - M10
Max fixture thickness - 20mm
Fixture clearance hole - 14mm
Embedment depth - 45mm
Minimum hole depth - 60mm
Stucture thickness - 100mm
Installation torque - 35nm
Size - M10 X 65
Drill size - 12mm
Anchor length - 65mm
Thread Diameter - M10
Max fixture thickness - 20mm
Fixture clearance hole - 14mm
Embedment depth - 45mm
Minimum hole depth - 60mm
Stucture thickness - 100mm
Installation torque - 35nm
Size - M10 X 95
Drill size - 12mm
Anchor length - 95mm
Thread Diameter - M10
Max fixture thickness - 50mm
Fixture clearance hole - 14mm
Embedment depth - 45mm
Minimum hole depth - 60mm
Stucture thickness - 100mm
Installation torque - 35nm
