Product Description

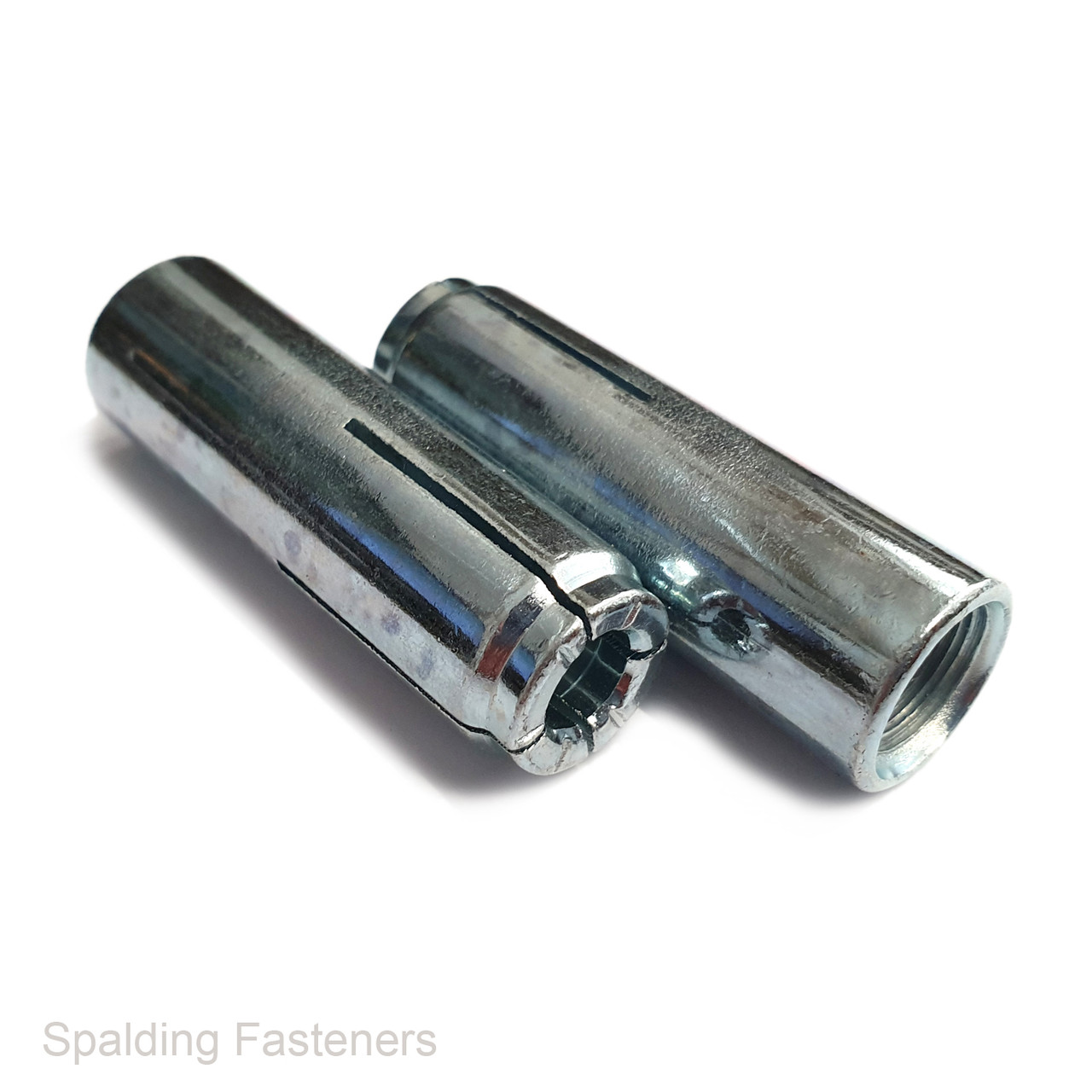

Drop In Wedge AnchorsZinc plated steel
Internally threaded expansion anchor for use in concrete.
standard none lipped type
Drill the correct size hole, clear the hole, place the anchor in the hole, set the anchor with the setting tool, secure the workpiece with a suitable sized bolt.
Tool not included.
Standard thread sizes (Metric)
M6 X 8mm wide X 25mm long, Max torque 4nm
M8 X 10mm wide x 30mm long, Max torque 8nm
M10 X 12mm wide x 40mm long, Max torque 15nm
M12 X 16mm wide x 50mm long, Max torque 35nm
M16 X 20mm wide x 65mm long, Max torque 59nm
M20 X 25mm wide x 80mm long, Max torque 118nm
