Product Description

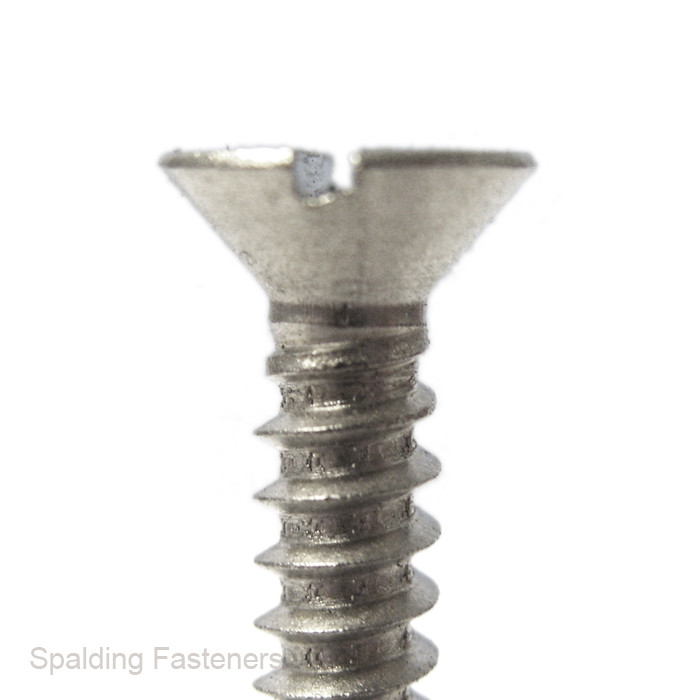

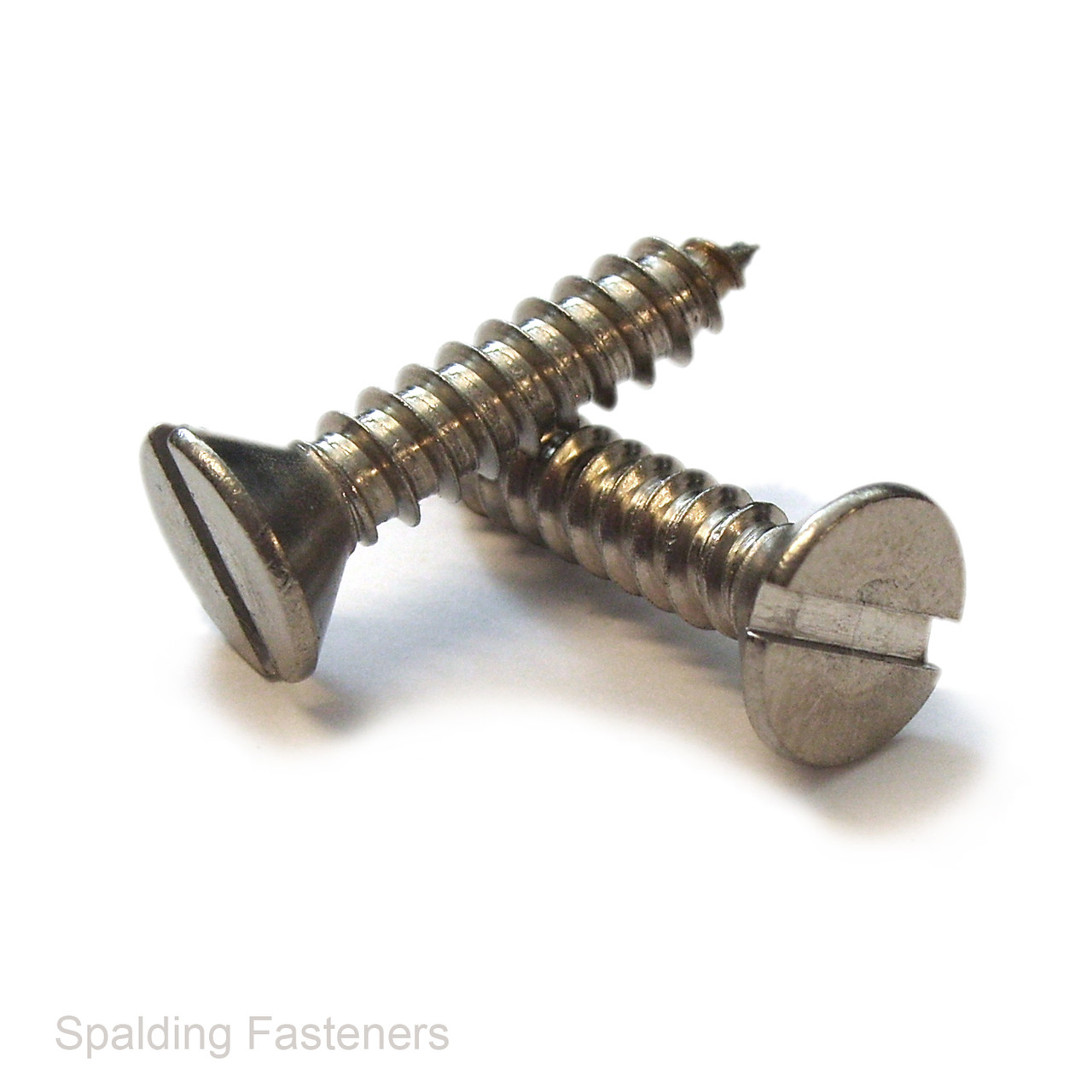

Countersunk Slotted Self Tappers (AB)Material - A2 Stainless Steel
DIN7972H
| A | B | C | D | E | F |
| No.8 | 4.2mm | 1 1/2" | 38mm | 5/16" | 8.1mm |
| No.8 | 4.2mm | 1 1/4" | 32mm | 5/16" | 8.1mm |
| No.8 | 4.2mm | 1 3/4" | 43mm | 5/16" | 8.1mm |
| No.8 | 4.2mm | 1" | 25mm | 5/16" | 8.1mm |
| No.8 | 4.2mm | 1/2" | 13mm | 5/16" | 8.1mm |
| No.8 | 4.2mm | 2" | 50mm | 5/16" | 8.1mm |
| No.8 | 4.2mm | 3/4" | 19mm | 5/16" | 8.1mm |
| No.8 | 4.2mm | 3/8" | 9.5mm | 5/16" | 8.1mm |
| No.8 | 4.2mm | 5/8" | 16mm | 5/16" | 8.1mm |
| No.8 | 4.2mm | 7/8" | 22mm | 5/16" | 8.1mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
