Product Description
Dome head type.Structural rivets are a high shear and tensile strength fastener.
Aluminium body and Aluminium stem.
Shear strength-
4.8mm - 2500n
6.4mm -5800n
Tensile strength - 4.8mm - 2000n
6.4mm - 3800n
Choice of 4.8mm or 6.3mm body diameter.
Multi grip design gives wide grip ranges;
Size 4.8mm x 10mm has a grip range of 1.6mm to 6.9mm.
Size 6.3mm x 14mm has a grip range of 2.0mm to 9.5mm.
Size 6.3mm x 20mm has a grip range of 8.9mm to 15.9mm.
6.3mm rivets require a 6.6 up to 6.9mm hole.
4.8mm rivets require a 4.9 up to 5.2mmmm hole.
Designed for single sided applications with heavy loads.
Stem mechanically locks into the body.
Large gap closing capability.
Provides very strong, vibration resistant joints.

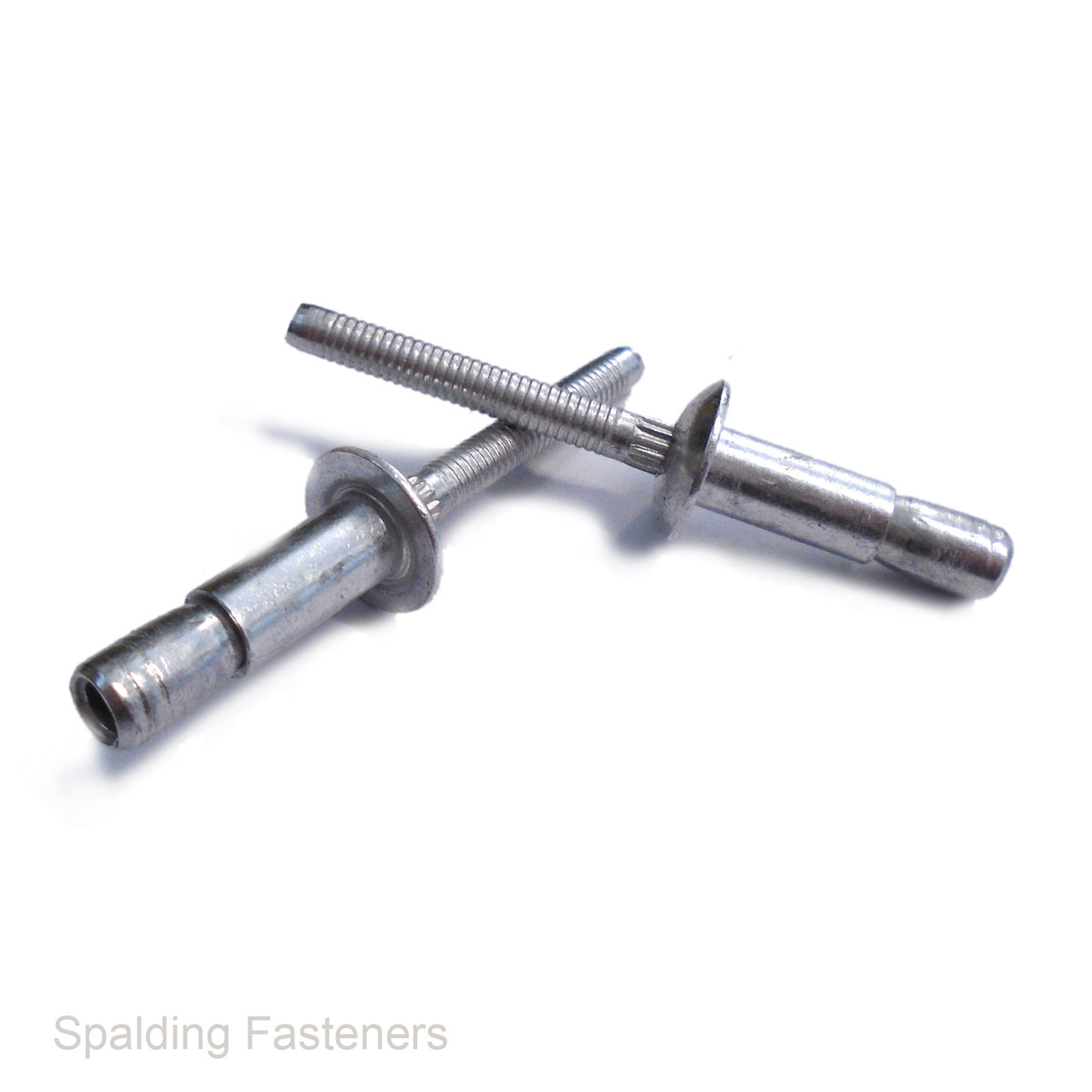

Photograph is for illustration only.
| A | B | C | D | E | F |
| 4.8mm | 10mm | 9.8mm | 1.6mm | 6.9mm | 4.9mm |
| 6.4mm | 14mm | 13mm | 2.0mm | 9.5mm | 6.6mm |
| 6.4mm | 20mm | 13mm | 8.9mm | 15.9mm | 6.6mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
