Product Description

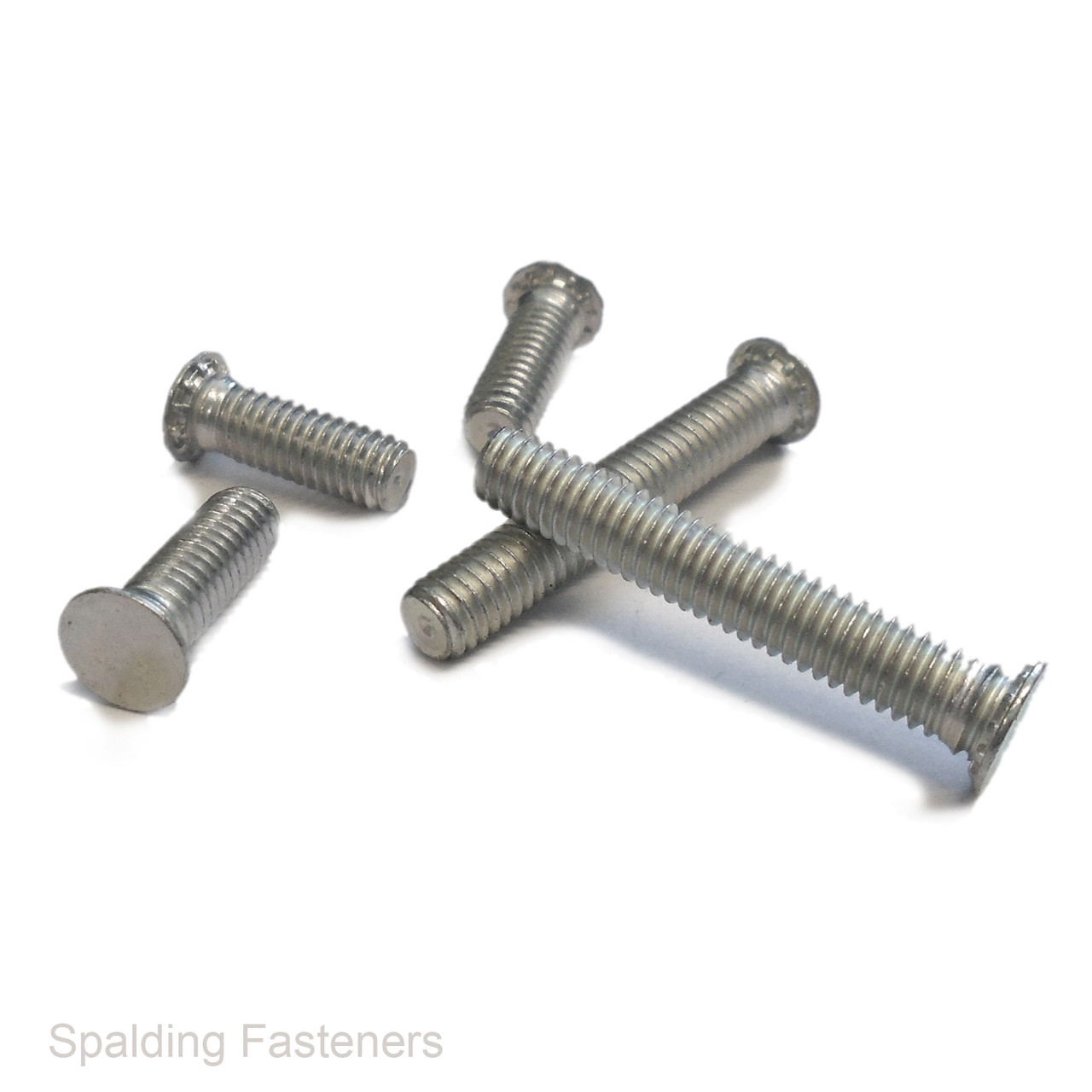

Type - Self Clinching Threaded Flush StudsThread - Standard Metric
Thread size - M6 (6MM)
Pitch - 1mm
Material - Carbon Steel / Zinc plated
Lab tests in steel sheet:
Installation: 45 kN
Torsional Resistance: 12 Nm
Pushout: 2600 N
Pullout: 11400 N
| A | B | C | D | E | F | G |
| 6mm | 35mm | 8.2mm | 3mm | 6 - 6.08mm | 7.9mm min. | 1.6mm |
| 6mm | 30mm | 8.2mm | 3mm | 6 - 6.08mm | 7.9mm min. | 1.6mm |
| 6mm | 25mm | 8.2mm | 3mm | 6 - 6.08mm | 7.9mm min. | 1.6mm |
| 6mm | 20mm | 8.2mm | 3mm | 6 - 6.08mm | 7.9mm min. | 1.6mm |
| 6mm | 18mm | 8.2mm | 3mm | 6 - 6.08mm | 7.9mm min. | 1.6mm |
| 6mm | 16mm | 8.2mm | 3mm | 6 - 6.08mm | 7.9mm min. | 1.6mm |
| 6mm | 15mm | 8.2mm | 3mm | 6 - 6.08mm | 7.9mm min. | 1.6mm |
| 6mm | 12mm | 8.2mm | 3mm | 6 - 6.08mm | 7.9mm min. | 1.6mm |
| 6mm | 10mm | 8.2mm | 3mm | 6 - 6.08mm | 7.9mm min. | 1.6mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
