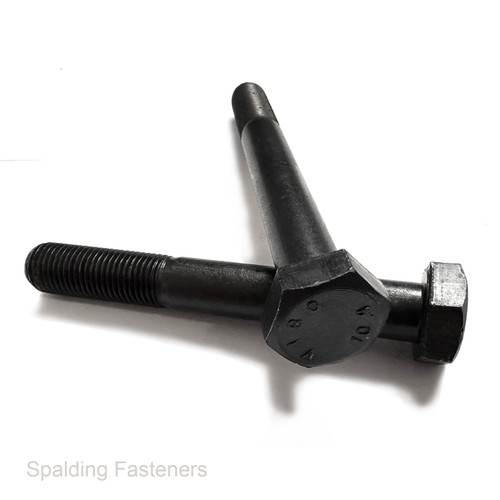

Product Description
Thread - UNF (AF) (Imperial fine thread) .Grade - 8.8 Grade 5

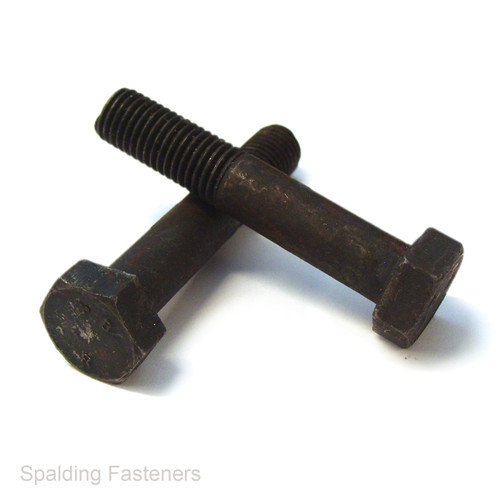

Finish - Black self colour steel .
Type - Hex Head, all sizes are part threaded .
| A | B | C | D | E | F |
| 1" | 3 1/2" | 2 1/4" | 1 1/2" | 39.64" | 12 |
| 1" | 3" | 2 1/4" | 1 1/2" | 39.64" | 12 |
| 1" | 4 1/2" | 2 1/4" | 1 1/2" | 39.64" | 12 |
| 1" | 4" | 2 1/4" | 1 1/2" | 39.64" | 12 |
| 1" | 5 1/2" | 2 1/4" | 1 1/2" | 39.64" | 12 |
| 1" | 5" | 2 1/4" | 1 1/2" | 39.64" | 12 |
| 1" | 6" | 2 1/4" | 1 1/2" | 39.64" | 12 |
| 1" | 7" | 2 1/2" | 1 1/2" | 39.64" | 12 |
| 1" | 8" | 2 1/2" | 1 1/2" | 39.64" | 12 |
| 1" | 9" | 2 1/2" | 1 1/2" | 39.64" | 12 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
