Product Description

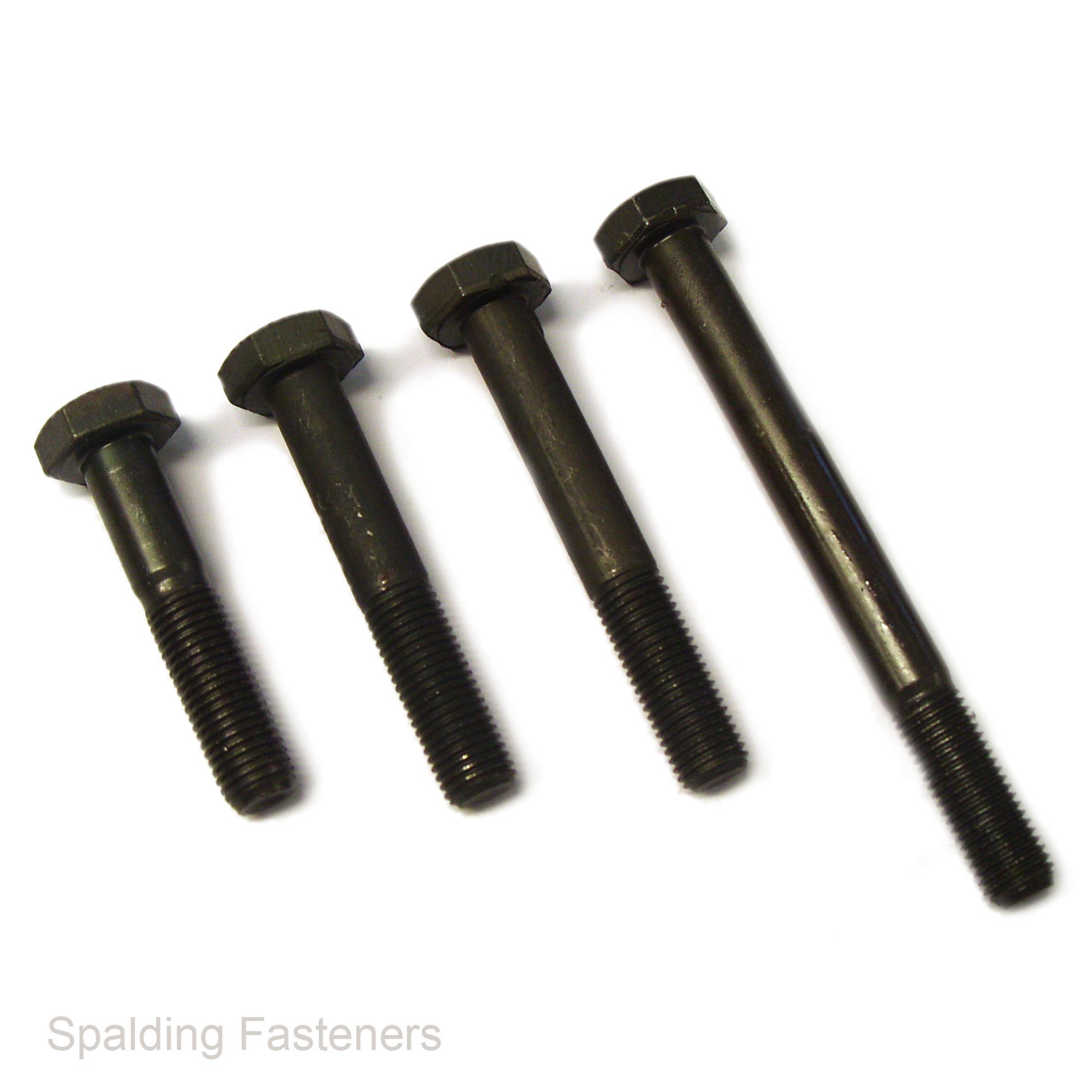

Thread Size - M30DIN 931
Hexagon Head
High Tensile Bolts
Grade 10.9 Steel
| A | B | C | D | E | F | G |
| 30mm | 100mm | 66mm | 46mm | 18.7mm | 3.5mm | 34mm |
| 30mm | 110mm | 66mm | 46mm | 18.7mm | 3.5mm | 44mm |
| 30mm | 120mm | 66mm | 46mm | 18.7mm | 3.5mm | 60mm |
| 30mm | 130mm | 72mm | 46mm | 18.7mm | 3.5mm | 58mm |
| 30mm | 140mm | 72mm | 46mm | 18.7mm | 3.5mm | 68mm |
| 30mm | 150mm | 72mm | 46mm | 18.7mm | 3.5mm | 78mm |
| 30mm | 160mm | 72mm | 46mm | 18.7mm | 3.5mm | 88mm |
| 30mm | 180mm | 72mm | 46mm | 18.7mm | 3.5mm | 108mm |
| 30mm | 200mm | 72mm | 46mm | 18.7mm | 3.5mm | 128mm |
| 30mm | 220mm | 85mm | 46mm | 18.7mm | 3.5mm | 135mm |
| 30mm | 240mm | 85mm | 46mm | 18.7mm | 3.5mm | 155mm |
| 30mm | 260mm | 85mm | 46mm | 18.7mm | 3.5mm | 175mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
